Our Specialized Veterinary Vaporizer Acessories include Inlet/Outlet Adapters, Cagemount Manifolds, Selectatec Manifolds, Pole Mounts, Tubing, Pin Index Fill Adapters and Anti Spill Adapters

Click to View or Print the Vaporizer Sales and Service Manufactures Manual

Vaporizer Parts
Description: Use only for Isoflurane

Vaporizer Servces / www.vaporizerservice.com
Weight/Dimensions:
(Screw fill, cagemount)

Weight: 6.8kg
Height: 183mm,
Depth: 140mm
Width: 135mm
3Year Warranty
Fill Adapters
Vaporizer Sales and Service / www.vaporizerservice.com
Inlet / Outlet Adapters
Vaporizer Sales and Service / www.vaporizerservice.com
Selectatec Manifold
Vaporizer Sales and Service / www.vaporizerservice.com

Cagemount Vaporizer Sales and Service / www.vaporizerservice.com

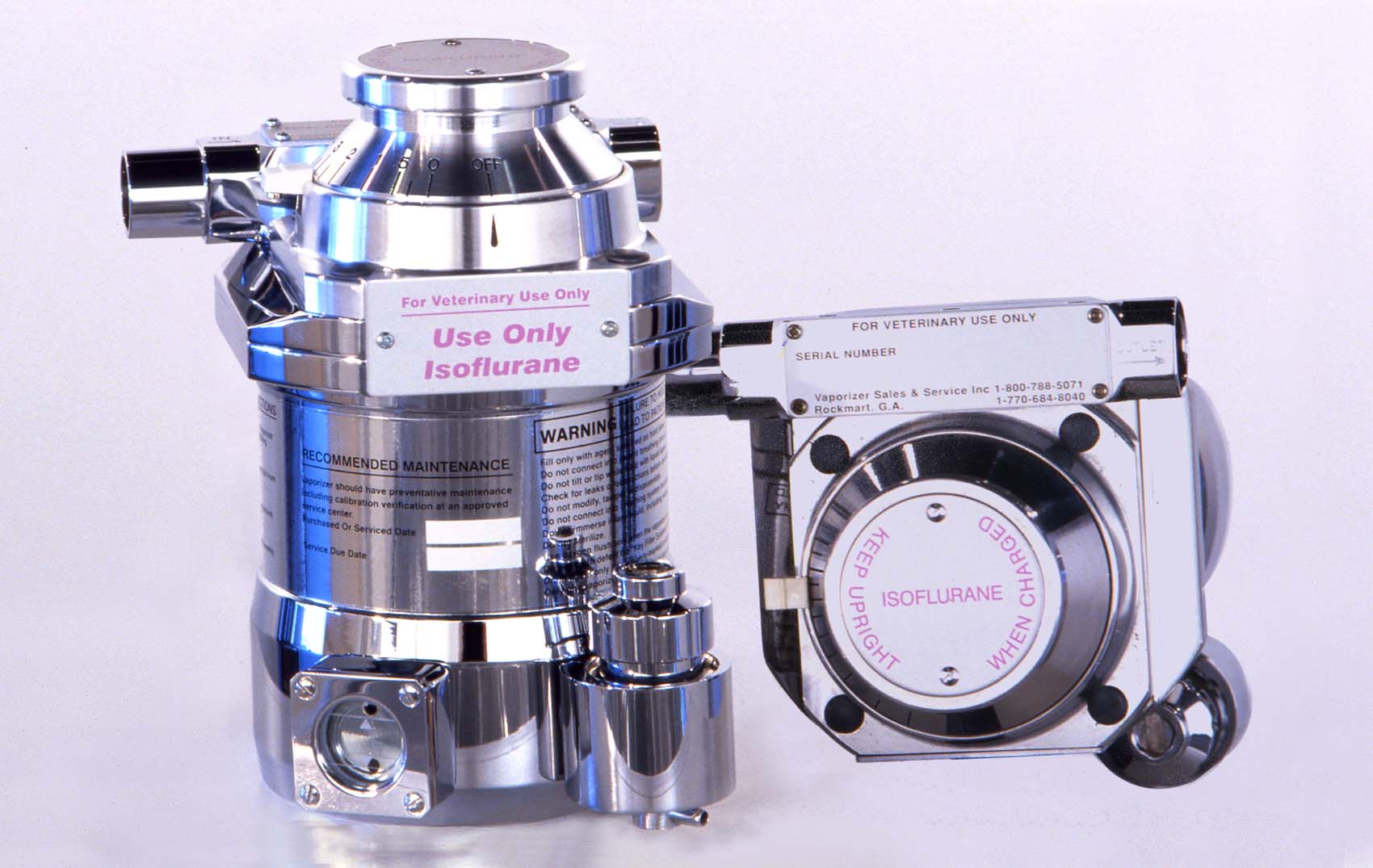

Vaporizer NEW 300 SERIES
Description: Use only for Isoflurane

Vaporizer Servces / www.vaporizerservice.com
Weight/Dimensions:
(Screw fill, cagemount)

Weight: 6.8kg
Height: 183mm,
Depth: 140mm
Width: 135mm
3Year Warranty

Features: Calibrated specifically for the specified anesthetic drug, Calibrated using a refractometer, Temperature, flow & duration of use compensation,Safety lock to help prevent accidental turn-on of dial

Fee: contact sales

Specifications: Calibrated at 21°C and 35°C
Calibration range: 0.25%, 0.5% through to 5% v.v. in 0.5% increment, Fluctuations in temperature, flow rate & duration of use is automatically compensated for during use,When used with I.P.P.V the variation in output is negligible

Normal Range: Fresh gas flow - 200cc to 15 liters/min,
Ambient temperature - 18°C to 35°C

Resistance to Gas Flow: 5cm wg. at "OFF" setting at 5 liter/min oxygen, 21-29cm wg. when delivering vapor in 5 liter/min oxygen at 21°C

Liquid Capacity: Amount of anesthetic drug to fully charge the vaporizer - 125ml, Amount retained by the wick system - 35ml

Options: Selectatec® mounting system that allows optimum flexibility of use, Screw filling, Cage mount (23mm male/female tapers) mounting, Isoflurane, Halothane, Sevoflurane, Enflurane,*Keyed filling for safer and pollution reduced filling and draining

Vaporizer OHIO
Description: Use only for Isoflurane

Vaporizer Servces / www.vaporizerservice.com
Weight/Dimensions:
(Screw fill, cagemount)

Weight: 6.8kg
Height: 183mm,
Depth: 140mm
Width: 135mm
3Year Warranty with annual service

Features: Calibrated specifically for the specified anesthetic drug, Calibrated using a refractometer, Temperature, flow & duration of use compensation,Safety lock to help prevent accidental turn-on of dial

Fee: contact sales

Specifications: Calibrated at 21°C and 35°C
Calibration range: 0.25%, 0.5% through to 5% v.v. in 0.5% increment, Fluctuations in temperature, flow rate & duration of use is automatically compensated for during use,When used with I.P.P.V the variation in output is negligible

Normal Range: Fresh gas flow - 200cc to 15 liters/min,
Ambient temperature - 18°C to 35°C

Resistance to Gas Flow: 5cm wg. at "OFF" setting at 5 liter/min oxygen, 21-29cm wg. when delivering vapor in 5 liter/min oxygen at 21°C

Liquid Capacity: Amount of anesthetic drug to fully charge the vaporizer - 125ml, Amount retained by the wick system - 35ml

Options: Selectatec® mounting system that allows optimum flexibility of use, Screw filling, Cage mount (23mm male/female tapers) mounting, Isoflurane, Halothane, Sevoflurane, Enflurane,*Keyed filling for safer and pollution reduced filling and draining

Vaporizer ISOTEC 4
Description: Use only for Isoflurane

Vaporizer Servces / www.vaporizerservice.com
Weight/Dimensions:
(Screw fill, cagemount)

Weight: 6.8kg
Height: 183mm,
Depth: 140mm
Width: 135mm
3Year Warranty with annual service

Features: Calibrated specifically for the specified anesthetic drug, Calibrated using a refractometer, Temperature, flow & duration of use compensation,Safety lock to help prevent accidental turn-on of dial

Fee: contact sales

Specifications: Calibrated at 21°C and 35°C
Calibration range: 0.25%, 0.5% through to 5% v.v. in 0.5% increment, Fluctuations in temperature, flow rate & duration of use is automatically compensated for during use,When used with I.P.P.V the variation in output is negligible

Normal Range: Fresh gas flow - 200cc to 15 liters/min,
Ambient temperature - 18°C to 35°C

Resistance to Gas Flow: 5cm wg. at "OFF" setting at 5 liter/min oxygen, 21-29cm wg. when delivering vapor in 5 liter/min oxygen at 21°C

Liquid Capacity: Amount of anesthetic drug to fully charge the vaporizer - 125ml, Amount retained by the wick system - 35ml

Options: Selectatec® mounting system that allows optimum flexibility of use, Screw filling, Cage mount (23mm male/female tapers) mounting, Isoflurane, Halothane, Sevoflurane, Enflurane,*Keyed filling for safer and pollution reduced filling and draining

Vaporizer ISOTEC 5
Description: Use only for Isoflurane

Vaporizer Servces / www.vaporizerservice.com
Weight/Dimensions:
(Screw fill, cagemount)

Weight: 7.0kg
Height: 250mm
Depth: 164mm
Width: 110mm
3Year Warranty

Specifications: Calibrated at 21C using an oxygen carrier gas at a flow of 5 litres/minute and they are temperature, flow and pressure compensated within the specific operating range.

Fee: contact sales

Performance:
Accuracy at
5 litres/minute20@ 21˚C + 2˚C
Vaporizer 5% = + 0.25% of delivered agent or
+ 15% of delivered setting (whichever is greater)
Vaporizer 8% = + 0.4% of delivered agent or
+ 15% of delivered setting (whichever is greater)

Resistance to Gas Flow: Out of Circuit
Resistance = 10-15cm wg / Vaporizer Setting = On + 0%
Flow Rate = 5 litres/minute, Oxygen / Temperature = 21 + 2˚C

Liquid Capacity: Amount of liquid to fully charge a vaporizer with dry wicks = 300 mililitres (nominial)
The amount retained by the wick system = 75 mililitres (nominial)

Vaporizer 5% - The amount of liquid to fill the vaporizer from the minimum to the maximum mark = 170 mililitres (nominial)
Vaporizer 8% (Servotec) - The amount of liquid to fill the vaporizer from the minimum to the maximum mark = 137 mililitres (nominial)
Enviromental Conditions:
Operating Temperature Range = 16˚ to 35˚C
Storage Temperature Range = 40˚ to 65˚C
Note: The vaporizer packaging should be protected from condensation

Vaporizer SERVOTEC 5
Description: Use only for Isoflurane

Vaporizer Servces / www.vaporizerservice.com
Weight/Dimensions:
(Screw fill, cagemount)

Weight: 6.8kg
Height: 183mm
Depth: 140mm
Width: 135mm
3Year Warranty

Features: Calibrated specifically for the specified anesthetic drug, Calibrated using a refractometer, Temperature, flow & duration of use compensation,Safety lock to help prevent accidental turn-on of dial

Fee: contact sales

Specifications: Calibrated at 21°C and 35°C
Calibration range: 0.25%, 0.5% through to 5% v.v. in 0.5% increment, Fluctuations in temperature, flow rate & duration of use is automatically compensated for during use,When used with I.P.P.V the variation in output is negligible

Normal Range: Fresh gas flow - 200cc to 15 liters/min,
Ambient temperature - 18°C to 35°C

Resistance to Gas Flow: 5cm wg. at "OFF" setting at 5 liter/min oxygen, 21-29cm wg. when delivering vapor in 5 liter/min oxygen at 21°C

Liquid Capacity: Amount of anesthetic drug to fully charge the vaporizer - 125ml, Amount retained by the wick system - 35ml

Options: Selectatec® mounting system that allows optimum flexibility of use, Screw filling, Cage mount (23mm male/female tapers) mounting, Isoflurane, Halothane, Sevoflurane, Enflurane,*Keyed filling for safer and pollution reduced filling and draining
